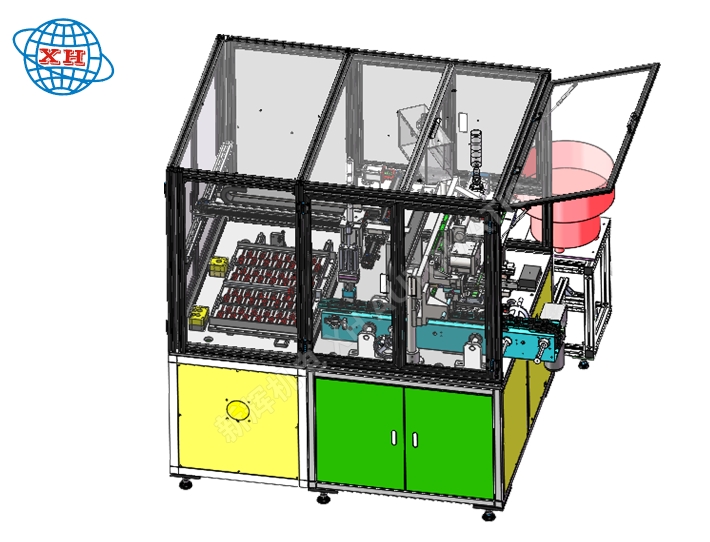

Automatic commutator machine

Host shape: 1400*1120*1800(L*W*H)

Equipment weight: about 650kg

Input voltage: 220V

Input power: 4.0kw

Working air pressure: 0.4-0.7MPa

Working efficiency: 6 seconds/piece 600pcs/h

Automatic core punching machine plays a key role in the motor rotor production line, mainly responsible for accurately press-fitting key components such as bearings into the iron core.

一、Preparation stage

Material preparation: Ensure that the supply of iron core, bearings and other required parts is sufficient and the quality meets the production requirements.

Equipment inspection: carry out all inspections on the automatic core punching machine, including mechanical parts, electrical control system, sensors, etc., to ensure that the equipment is in good condition.

Parameter setting: according to the production requirements, set the parameters of automatic core punching machine, such as pressing force, pressing speed, holding time, etc..

二、automatic feeding and positioning

Automatic loading: use the automatic loading device to convey the iron core to the specified position and carry out preliminary positioning.

Accurate positioning: The core is accurately positioned by mechanical sensors to ensure the accuracy of the bearing press-fitting position.

三、press-fitting process

Fast-forward stage: the press head approaches the iron core at a faster speed to reduce the waste of non-working time.

Detection stage: When the press head approaches the bearing press fitting position, reduce the speed for detection to ensure the accurate contact between the press head and the rotor.

Press-fit phase: Once contact is detected, the press head presses the bearing at the set press-fit speed and pressure until it reaches the predetermined position.

Pressure holding phase: After reaching the predefined position, a certain pressure and time are maintained to ensure a tight fit between the bearing and the iron core.

Return stage: after the holding time, the press head automatically returns to the initial position, ready for the next press fitting.

四、Quality Inspection

Online inspection: In the process of press-fitting, real-time monitoring of press-fitting force and press-fitting depth and other parameters through sensors to ensure the quality of press-fitting.

Off-line inspection: off-line inspection of the finished rotor, including appearance inspection, size measurement, rotation test, etc., to ensure that the quality of the combination of bearings and cores meets the production requirements.

五、Unloading and subsequent processing

Automatic discharging: automatically conveying the finished rotor to the next process.

Data recording: Record the data of each press-fitting, including press-fitting force, press-fitting depth, holding time, etc., so as to trace and analyze the quality.

六、Precautions

Standardized operation: In the process of operation, strictly abide by the operating procedures.

Maintenance: regular maintenance of automatic core punching machine, including cleaning, lubrication, inspection, etc., in order to extend the service life of the equipment and improve production efficiency.

In summary, the process of automatic core punching machine for motor rotor is a highly automated and precisely controlled process, which can signific

The overall technical program of the automatic core punching machine is designed to improve the automation of core and spindle assembly, thus enhancing production efficiency and product quality.

一、Technical Solution Overview

The Automatic Core Punching Machine realizes the automatic alignment, press fitting and inspection of iron core and rotor shaft by integrating mechanical, pneumatic and electrical control technologies. The program aims to reduce manual intervention, improve assembly precision and consistency, while reducing production costs and maintenance difficulties.

二、 the main components

Working table and support system

Work table: used to place the iron core and auxiliary fixtures in the assembly process.

Bracket: Supports the worktable and pneumatic and electrical components to ensure the stability and rigidity of the overall structure.

Pneumatic system

Cylinder: as a power source, drives the actuating elements such as indenter or fixture to carry out linear motion.

Booster Pump and Solenoid Valve: Provide stable air pressure source and control the cylinder's action through the solenoid valve to realize precise control.

Mechanical Transmission and Positioning System

Belt transfer belt: used to realize precise movement of the iron core in the horizontal direction.

Shaft positioning device: through the cylinder or motor-driven positioning block, to ensure the accurate position of the shaft in the assembly process.

Core Positioning Tooling: Used to clamp the core to prevent it from shifting or rotating during the assembly process.

Electrical control system

PLC controller: as the core control unit, it is responsible for receiving sensor signals, executing control logic, and driving pneumatic, mechanical and other execution elements.

Sensors: including position sensors, pressure sensors, etc., used for real-time monitoring of key parameters in the assembly process.

三、Workflow

Feeding and Positioning

Through the robotic arm and other loading devices, the iron core and rotor shaft are placed and designated respectively.

Utilize sensors and fixtures to position the iron core and rotor shaft to ensure that they are in the correct assembly position.

Automatic Alignment

Adjust the position of the core and spindle through sensors and fixtures to realize automatic alignment.

Press fitting

The servo motor drives the press head to press the rotor shaft into the iron core to complete the assembly process.

During the press fitting process, the electrical control system monitors the pressure, displacement and other parameters in real time to ensure the assembly quality.

Detection and discharging

Use sensors to detect the assembled motor rotor to ensure that the assembly quality meets the requirements.

The qualified motor rotor is conveyed to the next process, while the unqualified ones are reworked.

四、technical innovation points

Pneumatic drive: adopting pneumatic system instead of traditional hydraulic system reduces the manufacturing cost, reduces oil pollution and facilitates maintenance and repair.

Intelligent control: Intelligent control is realized through PLC controller and sensors to improve production efficiency and product quality.

In summary, the overall technical program of automatic core punching machine is a comprehensive system integrating mechanical, pneumatic and

This machine is used for rotor shaft and core pressing equipment, manual loading of raw materials, automatic completion of feeding, batching, and integrated design after automatic delivery of shaft pressure.

It occupies a small area, has high efficiency in the shaft, adopts servo-electric cylinder to press into the core, the feeding method is the suction nozzle, and the shaft feeding method is funnel type. After pressing the charge, the chips are pushed into the chain line in an orderly and automatic manner, which is simple and reliable.
