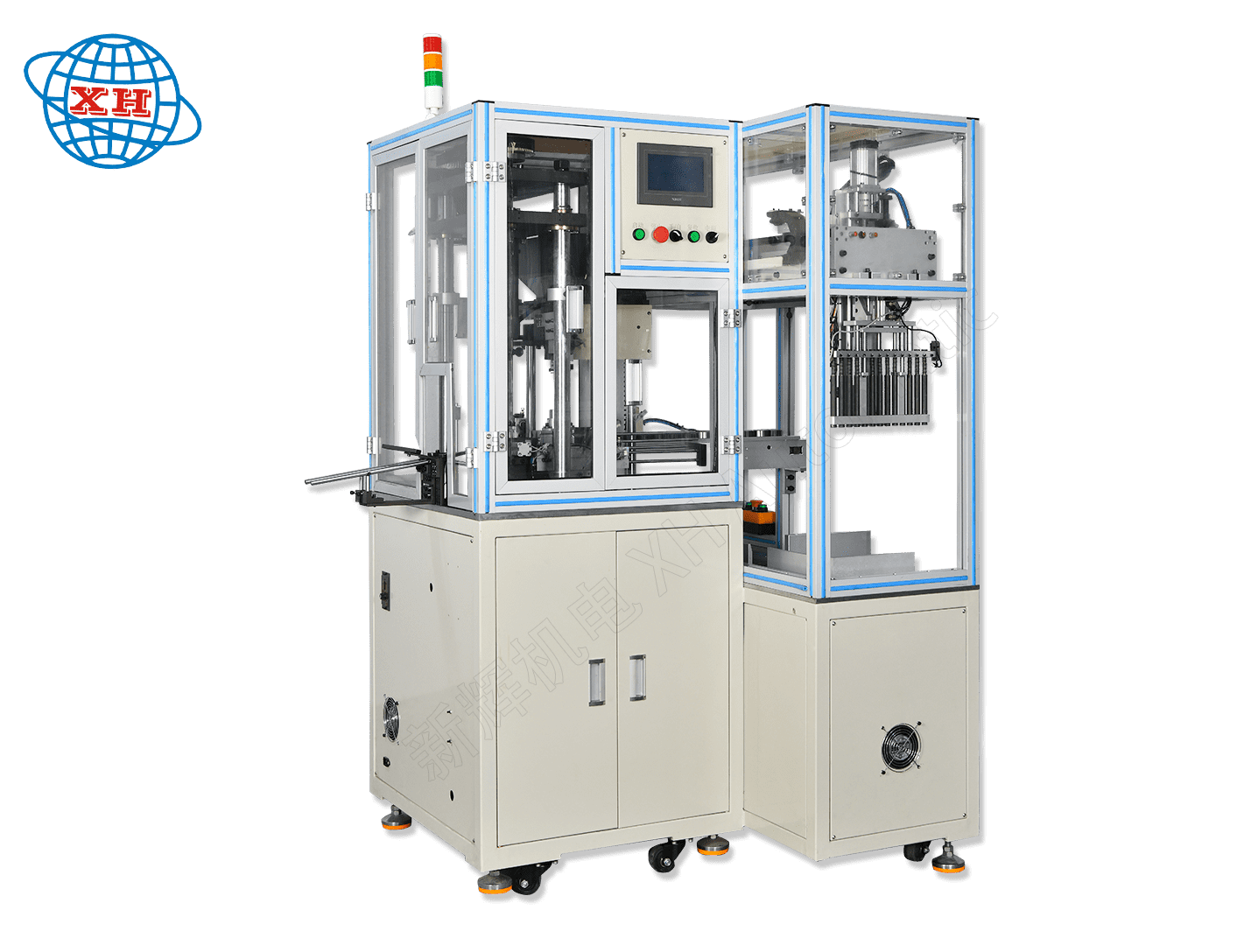

What are the common mechanical failures and solutions for motor motor rotor automatic core punching machine?
Motor motor rotor automatic core punching machine in the use of the process may appear some common mechanical failure, the following are some common failures and their solutions:
1、Excessive noise
Failure causes: bearing wear, insufficient lubrication or improper installation.
Solution: Check and replace the worn bearings, ensure adequate lubrication, and readjust the installation position.
2、Vibration abnormality
Failure causes: rotor imbalance, unstable installation or loose parts.
Solution: Perform dynamic balance test on the rotor, adjust or replace unbalanced parts, and make sure all connections are tight.
3、Motor overheating
Failure causes: excessive load, poor heat dissipation or excessive current.
Solution: Check the load, make sure the motor is running under rated load, clean the radiator and check whether the current is normal.
4、Punching core precision is not high
Failure causes: mold wear, inaccurate positioning or punch damage.
Solution: Regularly check the wear and tear of the molds and punches, repair or replace them if necessary to ensure the accuracy of the positioning system.
5、Mechanical stalling
Failure causes: poor lubrication, wear and tear of parts or foreign objects stuck.
Solution: Regular lubrication, check and replace worn parts, clean up foreign objects.
6、Electrical failure
Failure causes: loose wiring, component damage or unstable power supply.
Solution: Check the electrical connection, make sure the wiring is firm, check the stability of the power supply, and replace the damaged components if necessary.
7、Control system failure
Cause: software failure, hardware damage or signal interference.
Solution: restart the control system, check for software updates, troubleshoot the source of signal interference, and replace damaged hardware if necessary.
When dealing with these faults, it is recommended to follow the maintenance manual of the equipment, and regular maintenance and inspection to extend the service life of the equipment.
※: If you still can't solve the equipment fault by the above ways and means, please contact the technical specialist of Xinhui Electromechanical Equipment Co., Ltd. through the page chat tool for help.
Case:
A manufacturing company uses a motor motor rotor automatic core punching machine for rotor production. During the production process, abnormal noise suddenly appeared on the machine, and the accuracy of core punching decreased, resulting in lower production efficiency and affecting the delivery date.
Failure phenomenon
Abnormal noise: the equipment made a large friction sound during operation, and the sound was irregular.
Reduced accuracy of core punching: The size of the rotor produced was out of specification, which prevented the subsequent processes from proceeding normally.
Failure Analysis
After preliminary inspection, technicians found:
The noise originates from the spindle part of the equipment, probably due to bearing wear or insufficient lubrication.
The decrease in core punching accuracy may be due to severe wear of the mold, resulting in inaccurate positioning during core punching.
Solution
Tackle the abnormal noise:
Step 1: Turn off the equipment and conduct a thorough inspection, especially the spindle and bearing section.
Step 2: It was found that the spindle bearings were visibly worn and it was decided to replace them with new ones.
Step 3: While replacing the bearings, clean the spindle and its surrounding lubricant, add appropriate amount of high quality lubricant to ensure good lubrication.
Step 4: Restart the equipment and observe the noise situation to confirm that the noise problem has been solved.
Restore the accuracy of punching core:
Step 1: Check the mold and find that the punch of the mold is badly worn, resulting in a loss of core punching accuracy.
Step 2: Replace the punch with a new one and calibrate the mold to make sure it meets the design requirements.
Step 3: Conduct a trial production and check the rotor dimensions to make sure they are within specification.
After implementing the above solutions, the operating condition of the Motor Motor Rotor Automatic Core Punching Machine improved significantly:
The noise level of the machine was reduced to the normal range and the operation was smooth.
The size of the rotors produced meets the standard, the accuracy of the core punching is restored, and the production efficiency is improved.
Through the fault analysis and treatment of motor motor rotor automatic core punching machine, the enterprise not only solved the current problem, but also enhanced the awareness of equipment maintenance. It is recommended to carry out comprehensive inspection and maintenance of the equipment on a regular basis to prevent the recurrence of similar failures and ensure smooth production.
