What are the specifications for the type of circlip on the motor rotor?

Circlip is a retaining ring or snap ring, belongs to a kind of fasteners, often installed in the shaft groove or hole groove of the equipment, plays the role of preventing axial movement on the shaft. There are many different types of circlip specifications on the market. Immediately look at it.

First, what are the specifications of the card spring model

1, large size card spring models are V-MP175, V-MP176, V-MP177, V-MP17, the applicable size range of the diameter of the card spring in the 12-65 mm or so. The size of applicable ear hole is about 1.5-2.5mm.

2, large size models are V-MP170F, V-MP171F, V-MP172F, V-MP173F, suitable for the size range of the diameter of the spring 6-20 mm or so, the size of the ear hole for the size of 0.8-1.7 mm or so.

3, medium-sized models are V-MP170, V-MP171, V-MP173, V-MP520, V-MP521, V-MP522, V-MP523, suitable for the spring diameter size range of about 10-25 mm, applicable to the size of the ear hole is about 1.2-2.0 mm

4、Small size models are V-MP80, V-MP81, V-MP82, V-MP83, applicable to the size range of the card spring diameter of 10-25 mm. The size of the applicable ear hole is about 1.0-2.0 millimeters.

Second, what are the types of card spring

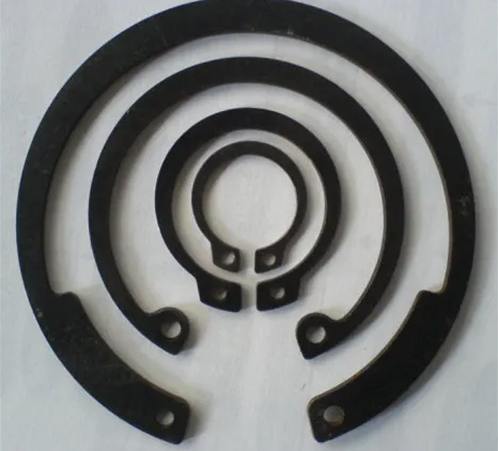

1, the shaft with the card spring

The inner diameter of the spring for shaft is smaller than the diameter of the shaft, and it is necessary to use the spring pliers to expand the spring into the reserved shaft groove during installation.

2、Hole Circlips

The outer diameter of the clamping spring for hole is larger than the assembly hole. When installing, use the clamping pliers to tighten the clamping spring to narrow the outer diameter and install it into the round hole, and then use the tension of rebound to keep it stable.

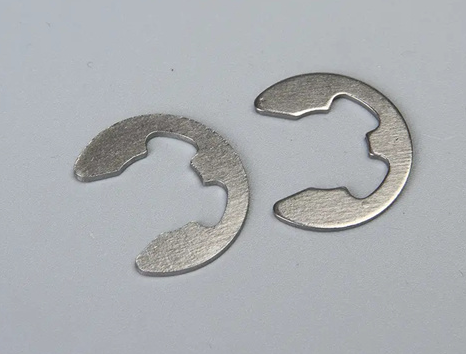

3、E-Type Circlip

E-type spring application range is relatively wide, can be used in pliers, printers, industrial machinery, etc., mainly for the role of the retaining ring, installation and dismantling of the need for professional tools.

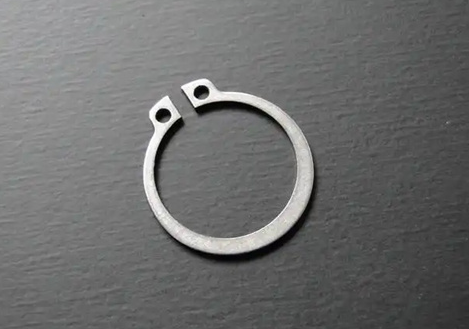

4、C-type Circlip

C-type shaft stop spring between the shaft with a spring and hole with a spring between the multi-purpose spring, in the selection of the spring is generally based on the size of the shaft diameter to choose the corresponding spring.
