Motor bearings are a crucial part of a motor, carrying the weight of the motor's rotor and ensuring that it rotates smoothly. In this article, I will cover the basic principles of motor bearings, common types, and their role in motors.

The basic principle of motor bearings is by reducing friction and supporting the rotor. They usually consist of an inner ring, an outer ring, rolling elements and a cage. The space between the inner and outer rings holds the rolling elements, which can be steel balls, rollers or sliding bodies. The purpose of the cage is to keep the rolling bodies in place and ensure that they can roll freely.

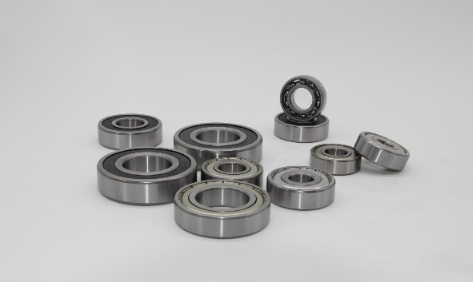

According to the type and structure of the rolling bodies, motor bearings can be categorized into various types such as deep groove ball bearings, cylindrical roller bearings, angular contact ball bearings and thrust ball bearings. Deep groove ball bearings are the most common type, which have a high load carrying capacity and low coefficient of friction and are suitable for most motor applications. Cylindrical roller bearings are suitable for high load carrying and low speed operation, while angular contact ball bearings are suitable for high speed operation and higher accuracy requirements. Thrust ball bearings are mainly used to carry axial loads.

Motor bearings play a vital role in electric motors. First, they support the weight of the motor rotor and ensure that the rotor can rotate smoothly. Secondly, they reduce the friction between the rotor and stationary parts, thereby reducing energy loss and heat generation. In addition, motor bearings absorb vibrations and shocks, protecting the motor from normal operation.

However, motor bearings also face some problems during their use. For example, bearings may experience wear and fatigue fractures due to long periods of high-speed operation and poor maintenance. In addition, the ingress of dust, moisture and other contaminants can lead to bearing failure. Therefore, regular inspection and maintenance of motor bearings is very important to prolong their service life and improve the reliability of the motor.

In conclusion, motor bearings are an integral part of a motor. They ensure proper motor operation by reducing friction and supporting the rotor. Understanding the basic principles and common types of motor bearings, as well as the importance of regular inspection and maintenance of the bearings, is important for the performance and longevity of the motor. We hope this article has helped you better understand the role and importance of motor bearings.
