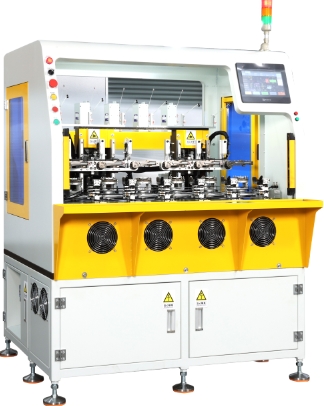

Brushless motor motor manual six-station internal winding machine common failure analysis and troubleshooting methods are as follows:

First, mechanical failure

1, winding is not smooth

Failure analysis: may be the winding wheel wear, wire groove with foreign objects or improper tension adjustment. Long-term use of the winding wheel will lead to surface abrasion, affecting the smoothness of the winding; wire groove if there are debris, will hinder the normal passage of the wire; tension is too large or too small, will make the wire in the winding process of jamming or slack.

Elimination methods: check the wear and tear of the winding wheel, such as wear and tear in time to replace; clean up the groove of the foreign body; re-adjust the tension device, so that the tension is moderate.

2, workstation switching abnormal

Failure Analysis: It may be the transmission parts of the switching mechanism is damaged, such as gear wear, chain loose, etc., may also be the positioning sensor failure, can not accurately identify the position of the workstation.

Elimination methods: check the transmission components, replace worn gears, adjust the chain tightness; check the positioning sensor, clean the sensor surface, check whether the connection line is loose, if damaged, then replace.

Second, electrical failure

1、Motor does not turn

Failure analysis: it may be a power failure, such as power line breakage, loose plug, etc., or the motor itself is damaged, such as winding short circuit, broken, or the controller is faulty, unable to output the correct control signal.

Elimination methods: check the power cord and plug to ensure that the connection is normal; use a multimeter to check the resistance of the motor winding to determine whether there is a short circuit or broken circuit, if any problem, then replace the motor; check the input and output signals of the controller, if there is a malfunction, repair or replace the controller.

2、Winding speed is not stable

Failure analysis: it may be improperly set motor drive parameters, or motor encoder failure, resulting in inaccurate speed feedback, or the motor load is too large, beyond its rated load.

Troubleshooting methods: readjust the parameters of the motor driver, such as acceleration time, deceleration time, speed loop gain, etc.; check the encoder connection line and working condition, if damaged, replace it in time; check the load of the winding machine, reduce the load or replace the motor with higher power.

Third, the control system failure

1、No reaction of operation panel

Failure analysis: the operating panel keys may be damaged, or the communication line between the panel and the controller is faulty, or the controller may be dead or program error.

Troubleshooting: Check whether the keys are flexible, whether they are stuck, if damaged, replace the keys; check whether the communication line is loose, broken or short-circuit, repair or replace the line; reset operation of the controller, such as still can not be resolved, re-download the program or replace the controller.

2、Parameter settings can not be saved

Failure Analysis: It may be the controller's memory chip failure, or the power supply battery is insufficient, resulting in the loss of stored data.

Troubleshooting: Check the working status of the memory chip and replace it if it is damaged; replace the power supply battery to ensure that the controller has a stable power supply to save the parameters.

※ If you still can't solve the problem by the above ways and means, please contact the technical specialist of Xinhui Mechanical & Electrical Equipment Co.
